car leaf spring

Specification: 35*100
Material: 51CrV4
The OEM number of a guide arm Z-100*35 is 991479, its theoretical total weight is 49.5 kg, wherein the theoretical weight of the first leaf is 18.2 kg.
This model of guide arm is in the form of two leaves, wherein the first leaf is provided with a spring eye. A matched steel-rubber composite bushing is required, whose dimension is Ø30×Ø57×102. The distance from the center of the spring eye to a central hole is 500 mm. The second leaf is in a Z shape.

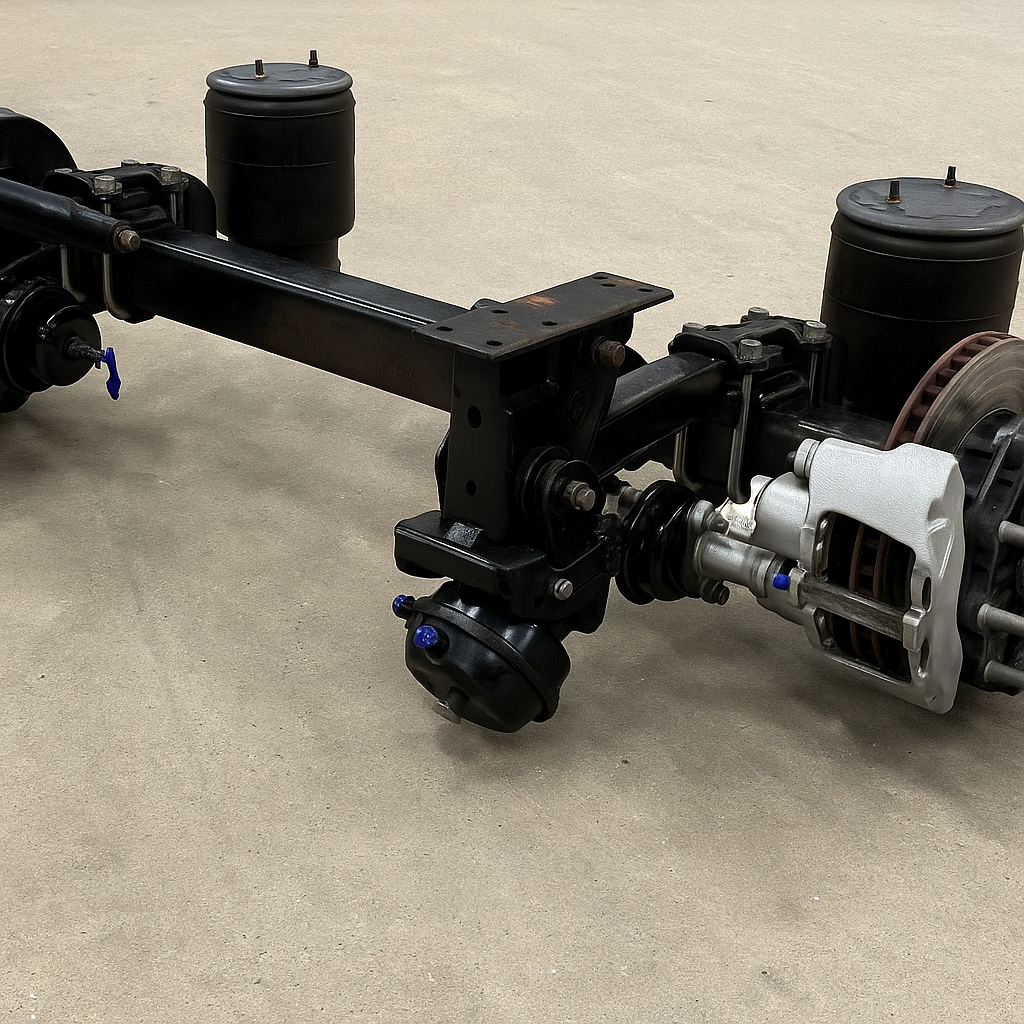

This guide arm is applicable to the vehicle model BPW 991479, and is capable of bearing loads from the vertical, longitudinal and lateral directions of a vehicle body and wheels, thus ensuring that the vehicle is kept stable in the traveling process.
Such guide arm is made from 51CrV4 and designed with a Z-shaped structure, so that it has good stiffness and toughness, can maintain the stable shape when impacted, and is not prone to deformation or fracture.
This model of guide arm has good abrasion resistance due to the excellent surface treatment process and the selection of high-quality materials, friction and abrasion between components such as wheels and vehicle frame can be reduced, and therefore the maintenance cost is lowered.
The abovementioned guide arm is relatively simple in mounting process, without complex processes and equipment. Meanwhile, it is compact in structure and small in occupied space, which brings convenience to layout and installation on vehicles.
Z-100*35 from EVERLAST is definitely your preference if BPW 991479 requires a guide arm.
